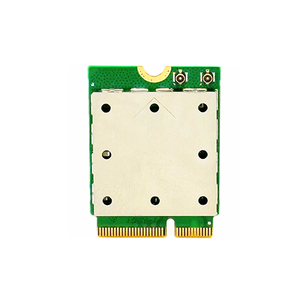

Product Name
QCA2076
2T2R
BT5.3/ BLE5.3
22.0 X 30.0mm
8276M-PU is a highly integrated System-On-Chip (SoC) supporting Wi-Fi 7 and Bluetooth (BT) 5.3.
General Features
Support IEEE802.11a/b/g/n/ac/ax/be.
Support Multi-link Operation (MLO).
Supports 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO).
Support tri-band 2.4 GHz/5 GHz/6 GHz.
Support up to 4096 QAM modulation at each band.
Channel bandwidth up to 40 MHz at 2.4 GHz, up to 160 MHz at 5GHz and 6 GHz.
Dual Band Simultaneous (DBS) up to 2.4 GHz + 5 GHz / 6 GHz.
Up to 5.3 Gbps data rate (2x2 5 GHz 160 MHz + 2x2 6 GHz 160MHz with 4K QAM modulation).
Dynamic Frequency Selection (DFS) radar detection.
Host Interface
Low-power PCIe (with L1 substate) interface.
Bluetooth Features
Compliant with Bluetooth 5.3 and ANT+
Support dual Bluetooth,Simultaneous Bluetooth connection and Bluetooth scan/Discovery;MRC receiver and implicit beamforming transmitter.
Support 2 Mbps Bluetooth Low Energy (BLE), BLE Long Range
BT host digital interface: USB
Video Streaming, Video/Voice Conferencing, Wireless Gaming, Real-time Collaboration, Cloud/ Ideal Solutions For Edge Computing, Industrial IoT, Immersive AR/VR, Interactive Telemedicine and other Application Scenarios.
| Model No. | 8276M-PU | Main Chipset | QCA2076 |
| Interface | WiFi:PCIe BT: USB | Wi-Fi Standard | IEEE802.11a/b/g/n/ac/ax/be+BLE5.3 |
| Data Rate | 5.3Gbps | Certification | RoHS,REACH |
| RF Antenna | Onboard Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
Operating Frequency | 2.4G:2.400 GHz ~ 2.4835 GHz (2.4 GHz ISM Band) 5G:5.1500 GHz ~ 5.850 GHz (5.0 GHz ISM Band) 6G:5.925 GHz ~ 7.125 GHz | Operating Voltage | 3.3V |
| Dimension | L22.0 * W30.0 * T2.4 mm | RF Chain | 2T2R |
| Operating Temperature | -30°C~+85°C | Storage Temperature | -40°C~+85°C |
| Part No. | Description |
| FG8276MPUX-00 | QCA2076,WiFi7,DBS 802.11a/b/g/n/ac/ax/be +BT5.3,2T2R,PCIe/USB,22*30mm M.2 interface |
