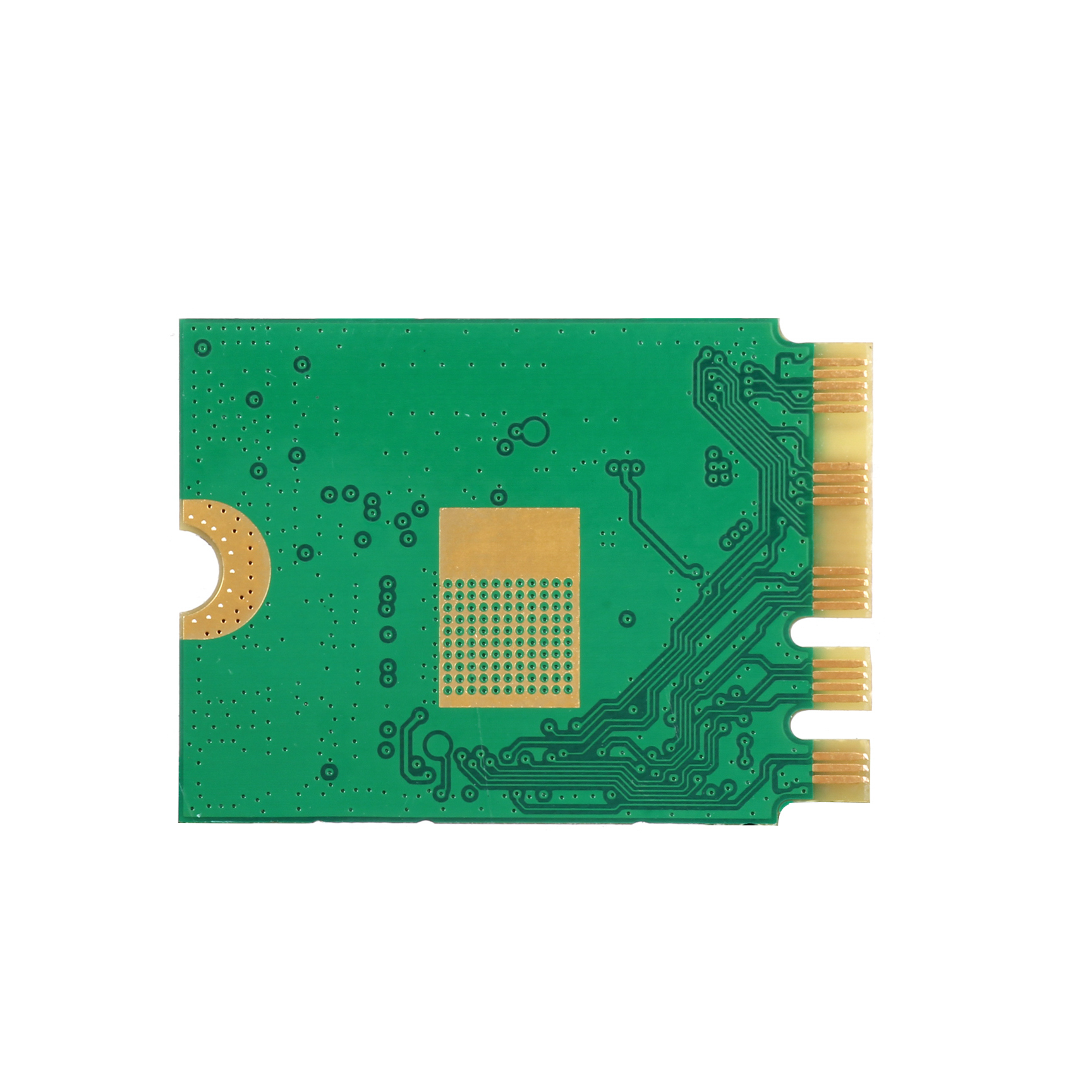

6222M-PUC Wi-Fi Module

RTL8822CE-CG 5G Wi-Fi
PCIe/USB 2T2R
BT5.0/ BLE5.0
22.0 x 30.0mm
状态:
  • 2.4G+5G

  • BT5.0 and above

  • Realtek

  • 2T2R

  • Select

  • PCIe Interface

Product Name

RTL8822CE-CG Wi-Fi  Module 6222M-PUC

RTL8822CE-CG

5G Wi-Fi

PCIe/USB

2T2R

BT5.0/ BLE5.0

22.0 x 30.0mm




Details Information


Introduction

Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides PCIe interface for Wi-Fi .

The module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility. The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 866.7Mbps to connect the wireless LAN.

The integrated module provides PCIe interface for Wi-Fi, USB interface for Bluetooth.

This compact module is a total solution for a combination of Wi-Fi and Bluetooth v5.0 technologies.

The module is specifically developed for all portable devices.


Features


General

IEEE 802.11a/b/g/n/ac compatible WLAN.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports 802.11ac 2x2, Wave-2 compliant with MU-MIMO.

Complete 802.11n MIMO solution for 2.4GHz and 5GHz band.

Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles.

Integrated 32K oscillator for power management.

Host Interface

Supports low power PCIe(Base Specification Revision 1.1) interface for WLAN and USB(2.0 FS-mode).

Bluetooth Features

Supports Bluetooth 5.0 system.

Compatible with Bluetooth v2.1+EDR.

Dual Mode support: Simultaneous LE and BR/EDR.

Supports Bluetooth for class1, class2 and class3 power level transmissions without requiring an external PA.


Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.


Block Diagram


1



Parameters

Model No. 6222M-PUC Main Chipset RTL8822CE-CG
Interface

Wi-Fi: PCIe     BT: USB

Wi-Fi Standard IEEE802.11a/b/g/n/ac+BLE5.0
Data Rate 866.7Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Android /Linux/ Win CE /iOS /XP/WIN7/WIN10


Operating Frequency

2.4G:2.400GHz~2.497GHz(2.4G ISM Band)

5.8G:4.900GHz~5.845GHz(5.0G ISM Band)


Operating Voltage

3.3V

Dimension L22 * W30 * T2.2 mm RF Chain 2T2R
Operating Temperature 0°C to 70°C Storage Temperature -55°C to 85°C


Ordering Information

Part No. Description
FG6222MPUC-00 RTL8822CE-CG, a/b/g/n/ac, Wi-Fi+BT5.0, 2T2R, 22X30mm, PCIE+USB,M.2 port, PCB Version V1.0
FG6222MPUC-01 RTL8822CE-CG,2.4G+5G/802.11b/g/n/ac,2T2R+BT5.0,PCIE+ USB,22*30,M.2 port,PCB V2.0
