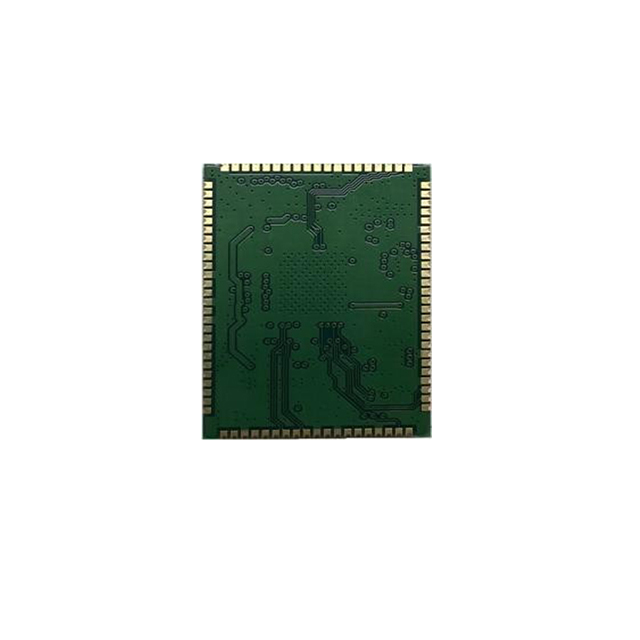

6235Z-RRB Wi-Fi Combo Module

6235Z-RRB Wi-Fi Combo Module
RTL8735BDM-VA4-CG
Single-band 1x1
Bluetooth 5.1
802.11b/g/n/a
1T1R
L27.5 x W20 x H2.9 mm
Contact us for HDK, SDK and EVB
状态:
  • 2.4G+5G

  • BT5.0 and above

  • Realtek

  • 1T1R

  • Select

  • UART/GPIO/I2C/PWM/ SDIO

Product Name

6235Z-RRB RTL8735BDM-VA4-CG

RTL8735BDM-VA4-CG
Single-band 1x1

802.11b/g/n/a

Bluetooth 5.1

1T1R

UART

L27.5 x W20 x H2.9 mm




Details Information

 Introduction

6235Z-RRB is a highly integrated low power 802.11 a/b/g/n Wireless LAN (WLAN) and Bluetooth  camera SoC.It combines ARM v8M MCUs (500MHz and 2.23 DMIPS/MHz), WLAN MAC, a 1T1R  capable WLAN baseband, Bluetooth MAC, RF, audio codec, ISP and H264/H265 encoder in a single  chip. It provides useful high speed connectivity interfaces, such as USB 2.0 host, USB 2.0 device, SD  host and Ethernet interfaces. It also provides a bunch of configurable GPIOs which are configured as  digital peripherals for different application and control usage.The AmebaPro-II series integrates  internal memory for full Wi-Fi protocol functions. The embedded memory configuration also enables  various application development.


 Features


General Features

802.11 a/b/g/n compatible 1x1, 2.4GHz/5GHz

802.11e QoS Enhancement (WMM)

Wi-Fi WEP, WPA, WPA2, WPA3, WPS. Open, shared key, and pair-wise key authentication services

Supports low power Tx/Rx for short-range application

Supports Antenna diversity

Maximum 4 UART interface, baud rate up to 4MHz and all of them can be configurable as log UART


WLAN Interface

Supports UART interface


Bluetooth Features

Bluetooth Low Energy (BLE) 5.1

Supports LE secure connections


 Block Diagram

1681808781264


 Parameters

Model No.

6235Z-RRB

Main Chipset

RTL8735BDM-VA4-CG

Interface

Wi-Fi: UART

BT: UART

Wi-Fi Standard

IEEE 802.11a/b/g/n+BLE5.1

Data Rate

72.2Mbps

Certification

RoHS

RF Antenna

On-board Antenna

OS Supported

Android/Linux

Operating Frequency

2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L27.5 x W20 x H2.9 mm

RF Chain

1T1R

Operating Temperature

-20°C to 80°C

Storage Temperature

-40°C to 105°C


 Ordering Information

Part No.

Description

FG6235ZRRB-00

RTL8735BDM-VA4-CG 802.11b/g/n/a 1T1R  27.50x20.0 mm
