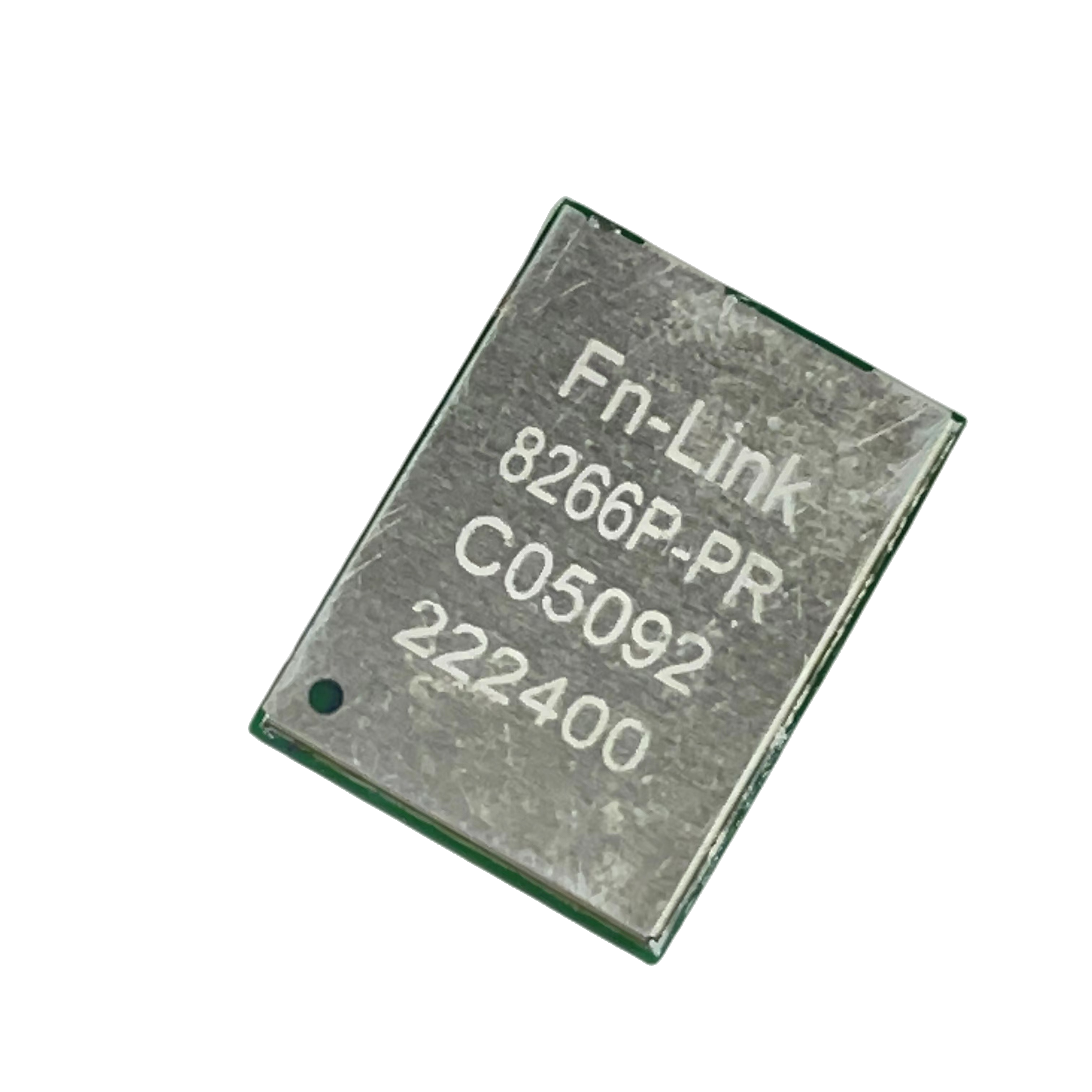

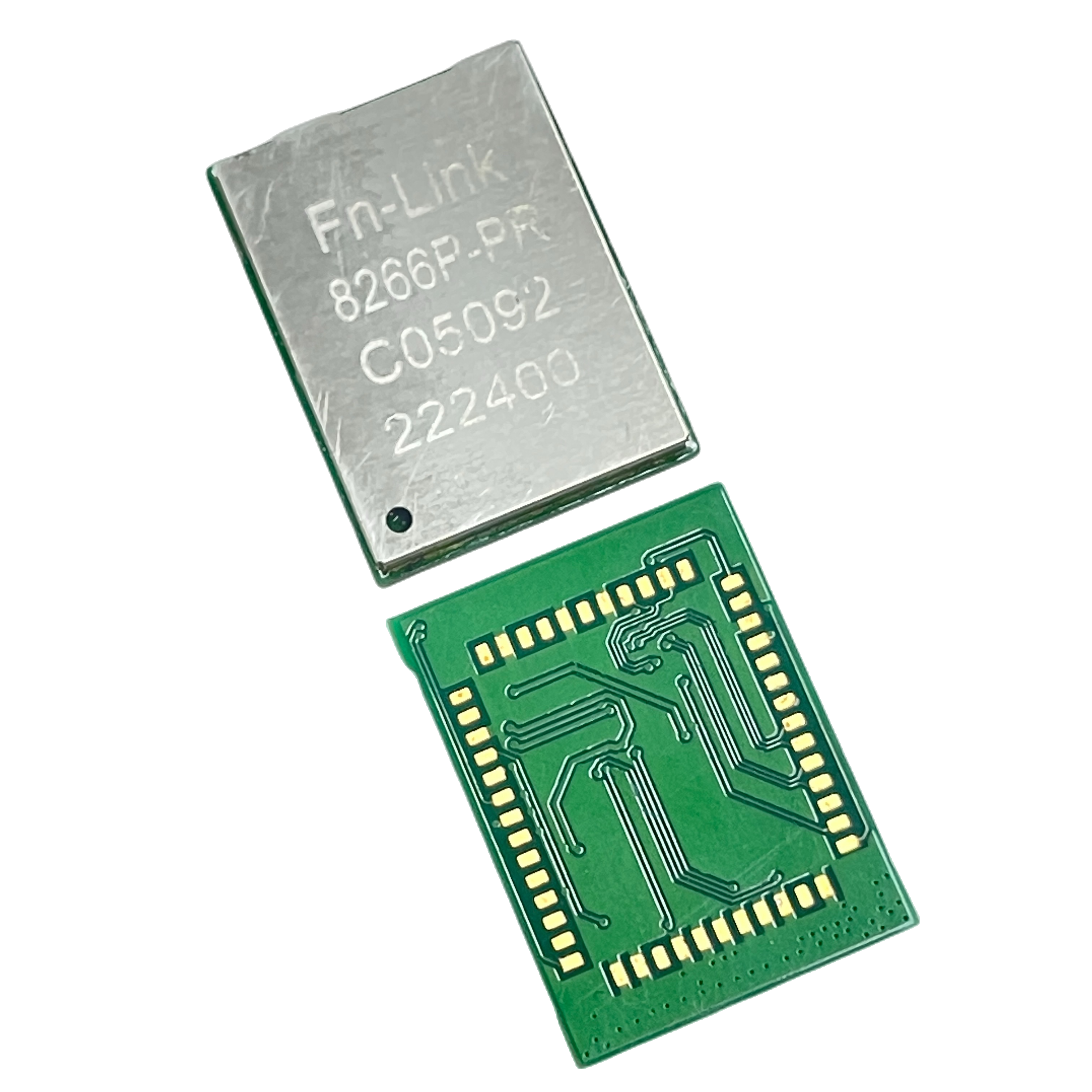

QCA2066 Wi-Fi 6 Module 8266P-PR
QCA2066 BT5.3
802.11a/b/g/n/ac/ax
PCIe/Uart 2T2R
15.0 x 20.0mm
8266P-PR is a highly integrated single module supporting 2x2 muti-user MIMO 802.11ax Wi-Fi and Bluetooth (BT) Milan.that with WLAN PCI Express network interface controller and HS-UART mixed interface. supporting simultaneous operation on 2.4 GHz and 5 GHz, or 6 GHz, also known as Dual Band Simultaneous(DBS).
DBS mode provide up to 3 Gbps data rate(2x2+2x2 11ax DBS).
General
Support IEEE802.11a/b/g/n/ac/ax .
Supports 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO).
Dual Band Simultaneous (DBS), up to 3 Gbps data rate (2x2+2x2 11ax DBS) .
Support Tri-band 2.4 GHz/5 GHz/6 GHz.
20 MHz/40 MHz channel bandwidth for 2.4 GHz and 20MHz/40 MHz/80 MHz/160 MHz channel bandwidth for 5GHz/6 GHz.
Host Interface
Low-power PCIe (with L1 substate) interface.
supports PCIe 3 interface for WLAN.
Bluetooth Features
Compliant with Bluetooth Milan .
Split ACL support for A2DP true stereo.
Dual Mode support: Simultaneous LE and BR/EDR.
Flexible interface PCM for Bluetooth audio.
BT host digital interface:
- HCI UART
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
2 Antenna Version：
3 Antenna Version：
Model No. | 8266P-PR | Main Chipset | QCA2066 |
Interface | Wi-Fi: PCIe BT: UART / PCM | Wi-Fi Standard | DBS802.11a/b/g/n/ac/ax+BT5.3 |
Data Rate | 1800Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
Operating Frequency | 2.4G:2.400GHz～2.497GHz(2.4G ISM Band) 5.8G:4.900GHz～5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
Dimension | L15 * W20 * T2.4 mm | RF Chain | 2T2R |
Operating Temperature | -30°C to 85°C | Storage Temperature | -40°C to 85°C |
Part No. | Description |
FG8266PPRX-00 | QCA2066, DBS 802.11a/b/g/n/ac/ax +BT5.3, 2T2R, 15x20mm, PCIe/UART, 2ant version |
| FG8266PPRX-01 | QCA2066, DBS 802.11a/b/g/n/ac/ax +BT5.3, 2T2R, 15x20mm, PCIe/UART, 3ant version |
