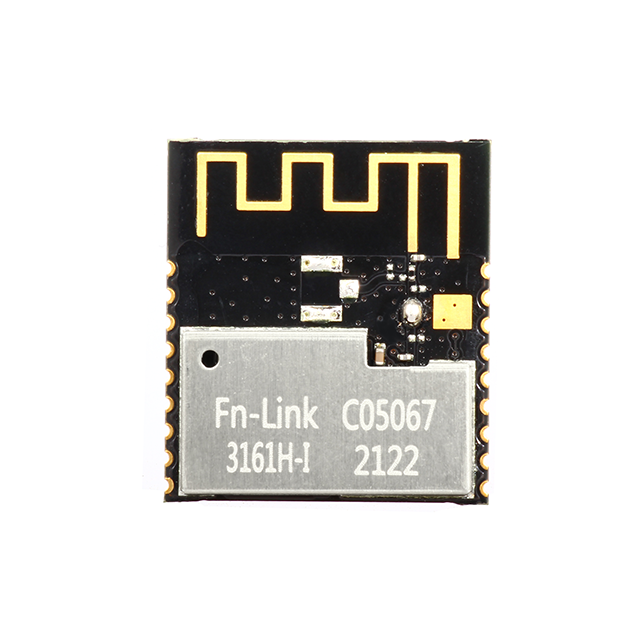

Hi3861V100 IoT Module 3161H-I
Hi3861V100
2.4G Wi-Fi
SDIO, SPI, I2C, UART, I2S, PWM, ADC, GPIO
1T1R
18.0x20.0mm
*3161H-I is a series of highly integrated IoT modules with low power 802.11b/g/n Wireless LAN (WLAN) communication controller. It combines a high-performance 32-bit MCU, WLAN (802.11 b/g/n) MAC, a 1T1R capable WLAN baseband, RF. It also provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.
3161H-I integrates internal memories for complete Wi-Fi protocol functions. The embedded memory configuration also provides simple application developments.
3161H-I is suitable for the field of low-power intelligent products of the Internet of things, such as smart home appliances, smart door locks, button, etc.
*Note: The series including 3161H-I and 3161H-IL, both have on board PCB version and external antenna version.
General Features
802.11b/g/n compatible WLAN.
72.2Mbps transmit and receive PHY rate using 20MHz bandwidth.
Compatible with 802.11n specification.
MAC support IEEE802.11 d/e/h/i/k/v/w.
Support STA and AP, support 6 clients when used as SAP.
802.11b/g/n compatible WLAN.
802.11e QoS Enhancement (WMM).
Support WFA WPA/WPA2, WPS2.0.
802.11n OFDM One Transmit and one Receive path(1T1R).
Support standard 20MHz bandwidth and 5M/10M narrow band.
DSSS with DBPSK and DQPSK, CCK modulation with long and short preamble.
32-bit MCU, max 160MHz.
SRAM 352KB.
ROM 288KB.
Flash 2MB.
Build-In 32.768KHz RTC (3161H-IL only).
Host Interface
SDIO 2.0 1x
SPI 1x
I2C 1x
UART 3x
I2S 1x
PWM 6x
ADC 7x
GPIO 13x
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Model No. | 3161H-I | Main Chipset | Hi3861V100 |
Interface | SDIO, SPI, I2C, UART, I2S, PWM, ADC, GPIO | WiFi Standard | IEEE802.11 b/g/n |
Data Rate | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Windows/Linux/Android |
Operating Frequency | 2.4G:2.400～2.4835GHz | Operating Voltage | 3.3V |
Dimension | L18.0 * W20.0 * T2.45mm | RF Chain | 1T1R |
Operating Temperature | -40°C to 85°C | Storage Temperature | -40°C to 125°C |
Part No. | Description |
FG3161HIXX-00 | Hi3861V100, 802.11b/g/n, 1T1R,UART/GPIO/I2C/PWM/SPI/SDIO/I2S, PCB ANT, 18*20mm, PCB V2.0 |
FG3161HIXX-01 | Hi3861V100, 802.11b/g/n, 1T1R,UART/GPIO/I2C/PWM/SPI/SDIO/I2S, IPEX RF CONNECTOR, 18*20mm, PCB V2.0 |
FG3161HIXX-02 | Hi3861V100, 802.11b/g/n, 1T1R,UART/GPIO/I2C/PWM/SPI/SDIO/I2S, PCB ANT, 18*20mm, PCB V3.0 （NEW HDK） It is recommended to use. |
