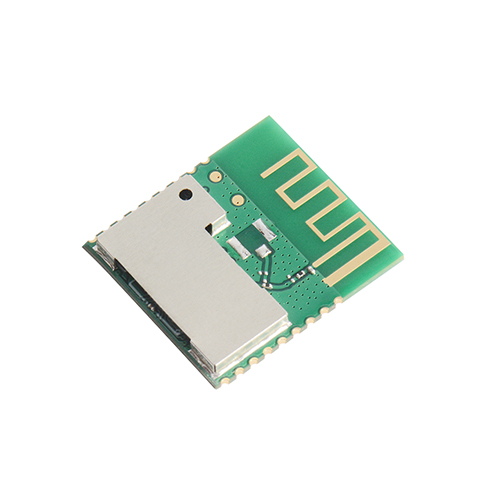

6220H-IF RTL8720CF
6220H-IF is a highly integrated module with single-chip 802.11 /b/g/n 1T1R WLAN and Bluetooth Realtek 8720CF,which combine a Real-M300 (KM4) CPU that is based on ARMv8-M architecture, and integrates a WLAN MAC,an1T1R capable WLAN baseband, an RF circuit, and Bluetooth Low Energy (BLE). They also provide configurable GPIOs that are configured as digital peripherals for various applications and control usage.
The module integrates internal memory for full Wi-Fi protocol functions. The embedded memory configuration also enables simple application development.
802.11 b/g/n compatible 1x1, 2.4GHz
Supports low power Tx/Rx for short-range application
Supports384KB ROM
Supports256KB RAM
Supports2MB FLASH
Bluetooth Low Energy (BLE) 4.2
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Model No. | 6220H-IF | Main Chipset | RTL8720CF |
Interface | Wi-Fi: UART BT: Uart | Wi-Fi Standard | IEEE802.11b/g/n+BLE4.2 |
Data Rate | / | Certification | RoHS,REACH |
RF Antenna |
On board | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
Operating Frequency | 2.400 GHz ~ 2.4835 GHz(2.4G ISM band) | Operating Voltage | 3.3V |
Dimension |
L18mm*W20mm | RF Chain | 2T2R |
Operating Temperature | -20°C to 85°C | Storage Temperature | -40°C to 85°C |
Part No. | Description |
FG6220HIFX-00 | RTL8720CF, 802.11b/g/n/WiFi+BLE,1T1R, UART, antenna on board, 18mm*20mm |
