Product Name

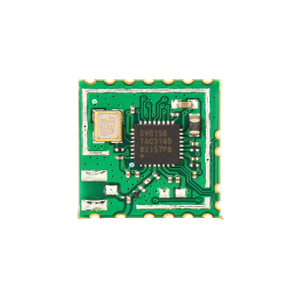

SV6158P Wi-Fi Module H158V-S
SV6158P
2.4G Wi-Fi
SDIO Interface
1T1R
23.0 x 21.0mm
Details Information
Introduction
H158V-S is an excellent performance WLAN SDIO2.0 network interface device. Based on iCOMM chipset SV6158. support 802.11b/g/n standard. Module integrated PCB printed antenna.
Features
Operate at ISM 2.4GHzfrequency bands.
Wi-Fi 1 T 1 R allow data rates supporting up to 150 Mbps PHY rates.
SDIO clock up to 50Mhz.
Module size is 23x21mm.
Module have integrated PCB printed antenna.
Applications
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Block Diagram
Parameters
Model No. | H158V-S | Main Chipset | SV6158P |
Interface | Wi-Fi: SDIO V2.0 | Wi-Fi Standard | IEEE802.11 b/g/n |
Data Rate | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux /Win CE /ios /XP /Win7 /Win11 |
Operating Frequency | 2.4G:2.400 ~2.4835GHz | Operating Voltage | 3.3V |
Dimension | L23.0 * W21.0 * T2.4mm | RF Chain | 1T1R |
Operating Temperature | -10°C to 70°C | Storage Temperature | -40°C to 85°C |
Ordering Information
Part No. | Description |
FGH158VSXX-00 | SV6158P,b/g/n,WiFi,1T1R,SDIO,23x21mm, with antenna, with shielding cover. |
