Product Name

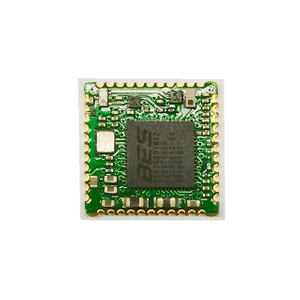

IW416UK Wi-Fi Module L216A-SR
IW416UK SDIO3.0
5G Wi-Fi
BT5.2 1T1R
12.0 x 12.0mm
Details Information
Introduction
L216A-SR module based on NXP IW416 chipset that complied with IEEE 802.11a/b/g/n standard from 2.4~2.5GHz and 5.15GHz ~ 5.85GHz,and it also can be used to provide up 150Mbps for 802.11n to connect wireless LAN.
The module support Bluetooth 5.2 UART.
Features
General
IEEE standards support:IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n.
Dual band: 2.4 GHz and 5 GHz.
Single stream 802.11n with 20 MHz and 40 MHz channels.
Supports WPA3,WPA2,WPA2 and WAP mixed mode,WEP security.
Host Interface
SDIO 3.0 Interface for WLAN.
UART Interface for Bluetooth.
PCM audio interfaces.
Bluetooth Features
Bluetooth 5.2 compliant.
Supports Bluetooth classic(BDR/EDR).
Supports Bluetooth Low Energy(BLE).
Applications
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Block Diagram
Parameters
Model No. | L216A-SR | Main Chipset | IW416UK |
Interface | Wi-Fi: SDIO3.0 BT: UART/SDIO | Wi-Fi Standard | IEEE802.11a/b/g/n+BT5.2 |
Data Rate | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
Operating Frequency | 2.400GHz～2.497GHz (2.4G ISM Band) 5.150 GHz ~ 5.850 GHz (5.0 GHz Band) | Operating Voltage | 3.3V |
Dimension | L12 * W12 * T1.8 mm | RF Chain | 1T1R |
Operating Temperature | -40°C to 85°C (Industrial) 0°C to 70°C(Commercial) | Storage Temperature | -40°C to 125°C |
Ordering Information
Product Name
IW416UK Wi-Fi Module L216A-SR
IW416UK SDIO3.0
5G Wi-Fi
BT5.2 1T1R
12.0 x 12.0mm
Details Information
Introduction
L216A-SR module based on NXP IW416 chipset that complied with IEEE 802.11a/b/g/n standard from 2.4~2.5GHz and 5.15GHz ~ 5.85GHz,and it also can be used to provide up 150Mbps for 802.11n to connect wireless LAN.
The module support Bluetooth 5.2 UART.
Features
General
IEEE standards support:IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n.
Dual band: 2.4 GHz and 5 GHz.
Single stream 802.11n with 20 MHz and 40 MHz channels.
Supports WPA3,WPA2,WPA2 and WAP mixed mode,WEP security.
Host Interface
SDIO 3.0 Interface for WLAN.
UART Interface for Bluetooth.
PCM audio interfaces.
Bluetooth Features
Bluetooth 5.2 compliant.
Supports Bluetooth classic(BDR/EDR).
Supports Bluetooth Low Energy(BLE).
Applications
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Block Diagram
Parameters
Model No. | L216A-SR | Main Chipset | IW416UK |
Interface | Wi-Fi: SDIO3.0 BT: UART/SDIO | Wi-Fi Standard | IEEE802.11a/b/g/n+BT5.2 |
Data Rate | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
Operating Frequency | 2.400GHz～2.497GHz (2.4G ISM Band) 5.150 GHz ~ 5.850 GHz (5.0 GHz Band) | Operating Voltage | 3.3V |
Dimension | L12 * W12 * T1.8 mm | RF Chain | 1T1R |
Operating Temperature | -40°C to 85°C (Industrial) 0°C to 70°C(Commercial) | Storage Temperature | -40°C to 125°C |
Ordering Information
