Product Name

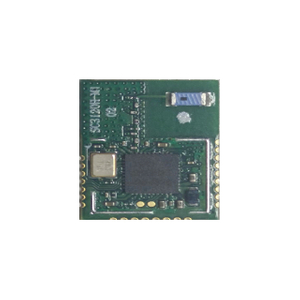

RTL8761BTV Bluetooth Module 6161B-R
RTL8761BTV
Bluetooth V5.0
UART Interface
13.0X15.0mm
Details Information
Introduction
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has Bluetooth functionalities. This module is a highly integrated single-chip Bluetooth 5.0 controller with a UART interface and a PCM interface. It complies with Bluetooth core specification v5 and supports dual mode (BR/EDR + Low Energy Controllers). It is compatible with previous versions, including v2.1 + LE. For BR/EDR, it allows multiple active links in either slave mode or master mode. For Low Energy, it supports multiple states and allows multiple active links in slave mode. BR/EDR link and LE link can be active at the same time.
The module is specifically developed for all portable devices. The highly integrated module makes the possibilities of the Bluetooth Controller applications.
Features
FG6161BRXX-00/01
General
Supports all packet types in basic rate and enhanced data rate.
Supports Secure Simple Pairing.
Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles.
Supports multiple Low Energy states.
Complies with HS-UART with configurable baud rate for Bluetooth.
Bluetooth Features
Bluetooth 5 specification compliant.
Supports Bluetooth classic (BDR/EDR).
Supports Bluetooth Low Energy (BLE).
Compatible with Bluetooth v2.1 Systems.
Supports PCM interface.
FG6161BRXX-02
General
Supports all packet types in basic rate and enhanced data rate.
Supports Secure Simple Pairing.
Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles.
Supports multiple Low Energy states.
Bluetooth Features
Bluetooth 5 specification compliant.
Supports Bluetooth Low Energy (BLE).
Supports Bluetooth classic (BDR/EDR).
Compatible with Bluetooth v2.1 Systems.
Complies with HS-UART with configurable baud rate for Bluetooth.
Supports PCM interface.
Applications
Laptop,Advertising Machine, Smart TV, IPC/NVR ,Industrial Control Equipment, Car Recorder, Smart Doorbell, Smart TV,Smart Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Car Front/Back End, UAV, Robot, Intelligent Gateway, Children's Education Toy, Lighting Fixture,Intelligent Street Lamp,Smart Home Appliances/ Home Appliance, Instrumentation (Water, Electricity, Gas) Smart City and other Consumer Electronic Products.
Block Diagram
Parameters
| Model No. | 6161B-R | Main Chipset | RTL8761BTV |
| Interface | BT: UART | Bluetooth Standard | BT5.0/ BLE5.0 |
| RF Antenna | External Antenna | Certification | RoHS,REACH |
| Operating Frequency | 2402 MHz〜2480 MHz | OS Supported | Android/Linux |
| Dimension | L13.0 * W15.0 *T1.65mm | Operating Voltage | 3.3V |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 85°C |
Ordering Information
| Part No. | Description |
| FG6161BRXX-00 | RTL8761BTV,BT v5.0,13x15x2.25mm, With shielding |
| FG6161BRXX-01 | RTL8761BTV,BT v5.0,13x15x1.65mm, No shielding |
| FG6161BRXX-02 | RTL8761BTV,BT v5.0,13x15x1.65mm,(No shielding, QFN version) |
